Product Summary

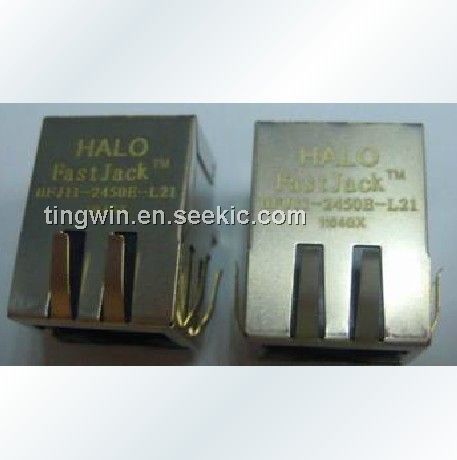

The HFJ11-2450E-L21 10BASE-T RJ-45 connector offers this complete range of single port integrated connector. The result is anextremely robust, the HFJ11-2450E-L21 compliant solution Single and multi port UastJacks is available for most 10BASE-T and 10/100BASE-T IC.
Parametrics
HFJ11-2450E-L21 electrical specifications: (1)Operating Temp: 0 to +70℃; (2)Isolation Voltage: 1,500 Vrms; (3)Insertion Loss (5-10MHz): -1dB max; (4)Return Loss (5-10MHz): -15dB min; (5)Attenuation @ 30MHz: Transmit: -30dB min; Receive: -18dB min; (6)Cut Off Freq.: 17MHz typ; (7)Crosstalk (1-10MHz): -30dB min.

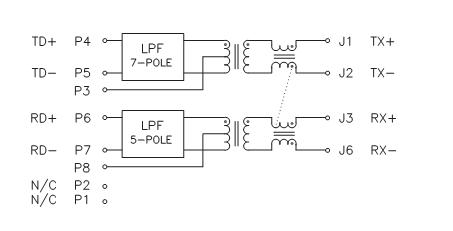

Diagrams
