Product Summary

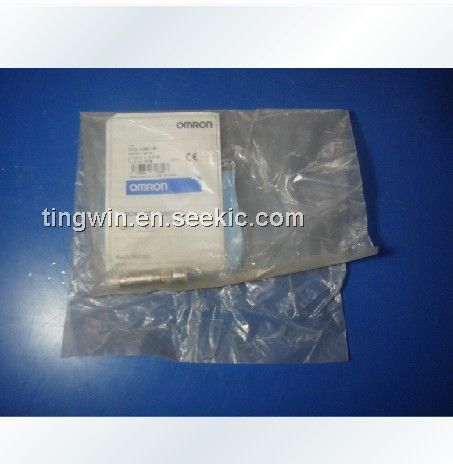

The E2EG-X5MB1-M1 is a Short-Barrel 2-Wire DC Prox Sensor.
Parametrics
E2EG-X5MB1-M1 absolute maximum ratings: (1)Supply voltage(operating voltage): 12 to 24 VDC, ripple (p-p): 10% max., (10 to 30 VDC); (2)Leakage current: 0.8 mA max; (3)Ambient temperature Operating: -25℃ to 70℃; (4)Insulation resistance: 50 MΩ min; (5)Vibration resistance: 10 to 55 Hz.
Features
E2EG-X5MB1-M1 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4)Choose prewired or connector models.

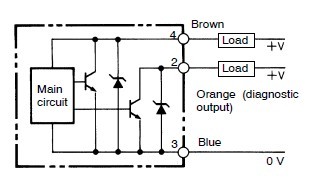

Diagrams
