Product Summary

The E2EC-C1R5D1 is a Short-Barrel 2-Wire DC Prox Sensor.

Parametrics

E2EC-C1R5D1 absolute maximum ratings: (1)Supply voltage(operating voltage): 12 to 24 VDC, ripple (p-p): 10% max., (10 to 30 VDC); (2)Leakage current: 0.8 mA max; (3)Ambient temperature Operating: -25℃ to 70℃; (4)Insulation resistance: 50 MΩ min; (5)Vibration resistance: 10 to 55 Hz.

Features

E2EC-C1R5D1 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4)Choose prewired or connector models.

Diagrams

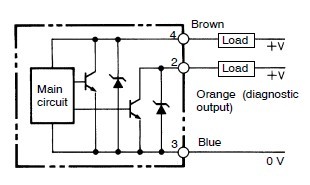

E2EC-C1R5D1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E2EC-C1R5D1
E2EC-C1R5D1

Omron Industrial

Proximity Sensors 5.4mm 1.5mm SENS

Data Sheet

0-1: $175.06
1-25: $164.76
E2EC-C1R5D1 5M
E2EC-C1R5D1 5M

Omron Industrial

Proximity Sensors PROX E2EC-C1R5D1 W/ 5M Cable

Data Sheet

0-1: $128.83
1-5: $120.36
5-10: $116.55
10-20: $114.43
E2EC-C1R5D1-M1GJ 0.5M
E2EC-C1R5D1-M1GJ 0.5M

Omron Industrial

Proximity Sensors E2EC-C1R51 W/ M12 PI GTAIL CONN

Data Sheet

0-1: $102.40
1-5: $95.66
5-10: $92.62
10-20: $90.95
E2EC-C1R5D15 2M
E2EC-C1R5D15 2M

Omron Industrial

Proximity Sensors Prox

Data Sheet

0-1: $191.79
1-5: $179.17
5-10: $173.50
10-20: $170.34
E2EC-C1R5D1-M1J 0.5M
E2EC-C1R5D1-M1J 0.5M

Omron Industrial

Proximity Sensors PROX E2EC-C1R5D1 W/M 12 Pigtail

Data Sheet

0-1: $183.63
1-5: $171.55
5-10: $166.10
10-20: $163.09
