Product Summary

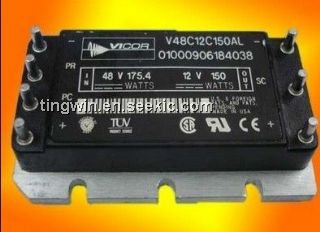

The V48C12C150A is a DC-DC converter module uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. The applications of the V48C12C150A are off-line systems using power PFC front-ends; electric vehicles.
Parametrics
V48C12C150A absolute maximum ratings: (1)+In to –In voltage: -0.5 to +425.0 Vdc; (2)+In to –In voltage: 500 Vdc <100ms; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +3.1 Vdc; (6)SC to –Out voltage: -0.5 to +1.5 Vdc; (7)Isolation voltage (in to out): 3000 Vrms; (8)Isolation voltage (in to base): 1550 Vrms; (9)Isolation voltage (out to base): 500 Vrms; (10)Storage temperature (C–Grade): -40 to +125 °C.
Features
V48C12C150A features: (1)DC input range: 250 - 425V; (2)Input surge withstand: 500Vfor 100ms; (3)DC output: 2V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.5% no load to full load; (6)Efficiency: 69.5%; (7)Maximum operating temperature: 100°C at full load; (8)Power density: 30W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.
Diagrams
