Product Summary

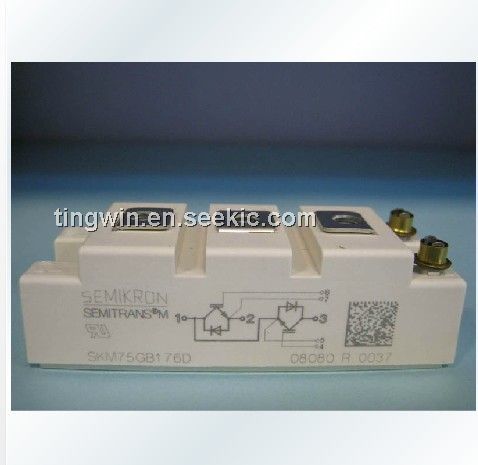

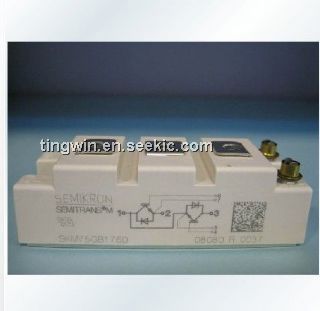

The SKM75GB176D is an IGBT module. The applications of it are AC inverter drives and UPS.
Parametrics
SKM75GB176D absolute maximum ratings: (1)VCES: 1700V; (2)IC: Tcase=25℃: 80A, Tcase=80℃: 55A; (3)ICRM: 100A; (4)VGES: ±20V; (5)tpsc: 10us; (6)Inverse diode IF: Tcase=25℃: 80A, Tcase=80℃: 55A; (7)Inverse diode IFRM: 100A; (8)Inverse diode IFSM: 550A; (9)Freewheeling diode IF: Tcase=25℃: 80A, Tcase=80℃: 55A; (10)Freewheeling diode IFRM: 200A; (11)Tvj: -40℃ to +150℃; (12)Tstg: -40℃ to +125℃; (13)Visol: 2500V.
Features
SKM75GB176D features: (1)homogeneous si; (2)trench= trenchgate technology; (3)VCE(SAT) with positive temperature coefficient; (4)high short circuit capability, self limiting to 6*Icnom.
