Product Summary

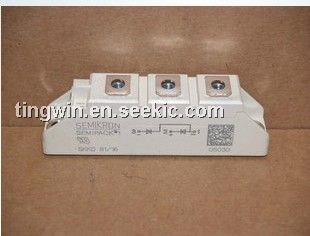

The SKKD100 16 is a Rectifier Diode Module. The applications of the SKKD100 16 include non-controllable rectifiers for AC/AC converters, line rectifiers for transistorized AC motor controllers, field supply for DC motors.

Parametrics

SKKD100 16 absolute maximum ratings: (1)ID: 73/91 A at Ts=45℃; (2)IFSM: 2500 A at Tvj=25℃; 10ms; (3)i2t: 31250 A2s at Tvj=25℃; 8,3,10ms; (4)VF: 1.35 V max at Tvj=25℃, IF=300A; (5)V(TO): 0.8 5V max at Tvj=125℃; (6)IRD: 5 mA max at Tvj=125℃, VRD=VRRM.

Features

SKKD100 16 features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard sodered joints for high reliability; (3)SKKD half bridge connection center-tap connections; (4)UL recognized, file no. E 63 532.

Diagrams

SKKD100 16 diagram
