Product Summary

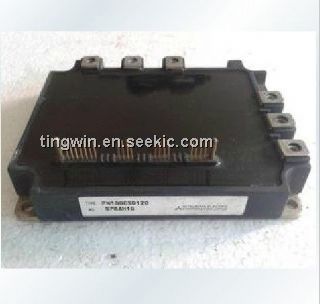

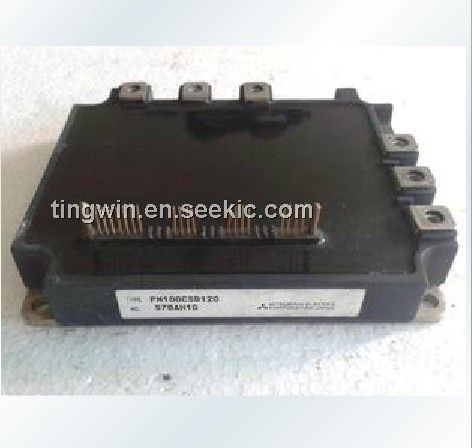

The pm150csd120 is a Powerex Intellimod power module. The m150csd120 is isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits of the m150csd120 provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. Applications of the m150csd120 include: Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
pm150csd120 absolute maximum ratings: (1) Power Device Junction Temperature Tj: -20 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Case Operating Temperature Tc: -20 to100°C; (4) Mounting Torque, M5 Mounting Screws: 31in-lb; (5) Isolation Voltage, AC 1 minute, 60Hz VRMS: 2500V; (6) Collector-Emitter Voltage (VD=15V, VCIN=15V) VCES: 1200V; (7) Collector Current, ± (Tc=25°C) ICP: 300A; (8) Supply Voltage (Applied between P-N) VCC: 800V; (9) Supply Voltage, Surge (Applied between P - N) VCC (surge) : 1000V; (10) Collector Dissipation (TC=25°C) Pc: 781W.
Features
pm150csd120 features: (1) Complete Output Power Circuit; (2) Gate Drive Circuit; (3) Protection Logic: short circuit, over current, Over Temperature, Under Voltage; (4) Low Loss Using 4th Generation IGBT Chip.

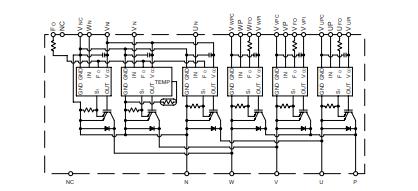

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150CSD120 |
|
MOD IPM 6PAC 1200V 150A |
Data Sheet |
|
|
||||||
