Product Summary

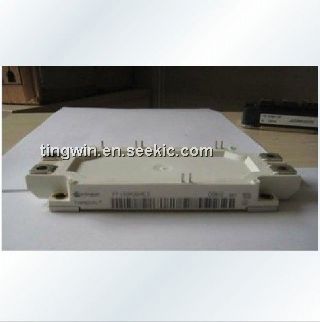

The ff450r06me3 is an EconoDUAL3 module with Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode and NTC. Applications of the ff450r06me3 include: high power converters, motor drives, servo drives, UPS systems and wind turbines.





Parametrics

ff450r06me3 absolute maximum ratings: (1) collector-emitter voltage VCES: 600V (Tvj=25°C) ; (2) DC-collector current Ic: 550A (Tc=25°C, Tvj=175°C) ; (3) repetitive peak collector current ICRM: 900A (tp=1ms) ; (4) total power dissipation Ptot: 1250W (Tc=25°C, Tvj=175°C) ; (5) gate-emitter peak voltage VGES: +/-20V.

Features

ff450r06me3 features: (1) Trench IGBT3; (2) Tvjop=150°C; (3) VCEsat with positive temperature coefficient; (4) high power density; (5) isolated base plate; (6) standard housing.

Diagrams

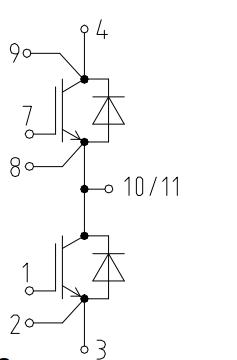

ff450r06me3 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF450R06ME3
FF450R06ME3

Infineon Technologies

IGBT Modules N-CH 600V 550A

Data Sheet

0-6: $104.12
6-10: $93.70
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF450
FF450

Cooper Bussmann

Fuses 450A 550V AC/400VDC

Data Sheet

0-1: $121.67
1-10: $116.15
FF450R06ME3
FF450R06ME3

Infineon Technologies

IGBT Modules N-CH 600V 550A

Data Sheet

0-6: $104.12
6-10: $93.70
FF450R12IE4
FF450R12IE4

Infineon Technologies

IGBT Modules N-CH 1.2KV 450A

Data Sheet

0-2: $318.01
2-10: $286.19
FF450R12KE4
FF450R12KE4

Infineon Technologies

IGBT Modules N-CH 1.2KV 520A

Data Sheet

0-6: $133.78
6-10: $120.40
FF450R12KT4
FF450R12KT4

Infineon Technologies

IGBT Modules N-CH 1.2KV 580A

Data Sheet

0-6: $133.78
6-10: $120.40
FF450R12ME3
FF450R12ME3

Infineon Technologies

IGBT Modules N-CH 1.2KV 600A

Data Sheet

0-6: $140.45
6-10: $126.40
