Product Summary
The ff300R12kt4 is a 62mm C-series module with fast trench/fieldstop IGBT4 and optimized EmCon Diode/
Parametrics
ff300R12kt4 absolute maximum ratings: (1) collector-emitter voltage VCES: 1200V (Tvj=25°C) ; (2) DC-collector current IC nom: 450A (Tc=100°C, Tvj=175°C) ; (3) repetitive collector current ICRM: 600A (tp=1ms) ; (4) total power dissipation Ptot: 1600W (Tc=25°C, Tvj=175°C) ; (5) gate-emitter peak voltage VGES: ±20V.
Features
ff300R12kt4 features: (1) collector-emitter saturation voltage VCE sat: 2.05V (IC=300A, VGE=15V, Tvj=25°C) , 2.1V (IC=300A, VGE=15V, Tvj=125°C) , 1.7V (IC=200A, VGE=15V, Tvj=150°C) ; (2) gate thresold voltage VGEtn: 5.2 to 6.4V (Ic=3.2mA, VCE=VGE, Tvj=25°C) ; (3) internal gate resistor RGin: 2.5Ω (Tvj=25°C) ; (4) collector-emitter cut-off currentICES: 5mA (VCE=1200V, VGE=0V, Tvj=25°C) ; (5) gate-emitter leakage current IGES: 400nA (VCE=0V, VGE=20V, Tvj=25°C) .

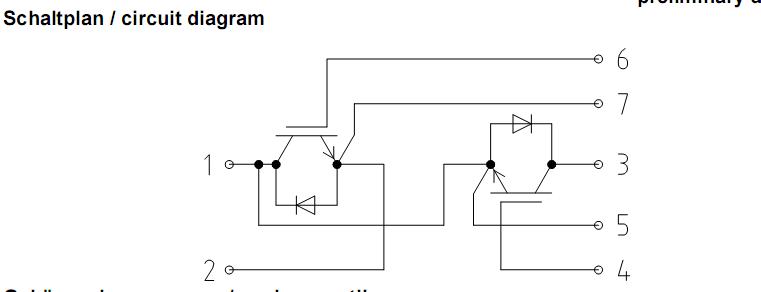

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF300R12KT4 |
Infineon Technologies |
IGBT Modules IGBT 1200V 300A |
Data Sheet |
|
|
||||||||||
