Product Summary

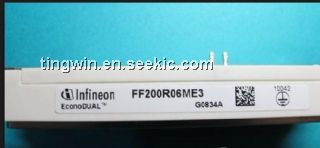

The ff200r06me3 is an EconoDUAL Module with Trench/Feldstopp IGBT3 and Emitter Controlled 3 Diode and NTC. Applications of the ff200r06me3 include: high power converters, motor drives and UPS systems.

Parametrics

ff200r06me3 absolute maximum ratings: (1) collect-emitter voltage VCES: 600V (Tvj=25°C) ; (2) DC-collector current IC: 260A (Tc=25°C, Tvj=175°C) ; (3) repetitive peak collector current ICRM: 400A (tp=1ms) ; (4) total power dissipation Ptot: 680W (Tc=25°C, Tvj=175°C) ; (5) gate-emitter peak voltage VGES: ±20V.

Features

ff200r06me3 features: (1) low switching losses; (2) VCEsat with positive temperature coefficient; (4) low VCEsat; (5)package with CTI＞200; (6) isolated base plate; (7) standard housing.

Diagrams

ff200r06me3 Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF200R06ME3
FF200R06ME3
Infineon Technologies
IGBT Modules IGBT 600V 200A
Data Sheet
0-8: $57.00
8-10: $51.60
