Product Summary

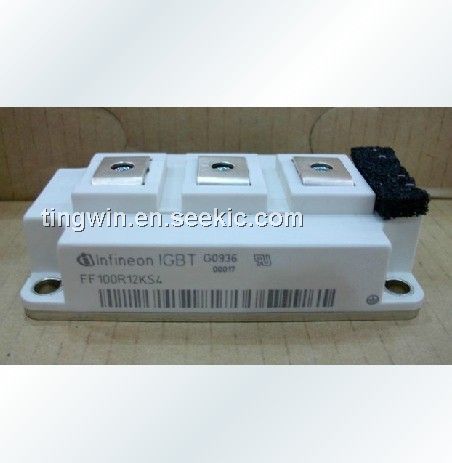

The ffF100r12ks4 is a 62mm C-Series module with the fast IGBT2 for high-frequency switching. Applications of the ffF100r12ks4 include: high frequency switching, medical applications, motor drives, resonant inverter applications, servo drives and UPS systems.

Parametrics

ffF100r12ks4 absolute maximum ratings: (1) collect-emitter voltage VCES: 1200V (Tvj=25°C) ; (2) DC-collector current IC: 150A (Tc=25°C, Tvj=150°C) ; (3) repetitive peak collector current ICRM: 200A (tp=1ms) ; (4) total power dissipation Ptot: 780W (Tc=25°C, Tvj=150°C) ; (5) gate-emitter peak voltage VGES: ±20V.

Features

ffF100r12ks4 features: (1) high short circuit capability, self limiting short circuit current; (2) low switching losses; (3) unbeatable robustness; (4) VCEsat with positive temperature coefficient; (5) package with CTI＞400; (6) high creepage and clearanc distances; (7) isolated base plate; (8) copper base plate; (9) standard housing.

Diagrams

ffF100r12ks4 Ciruit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF100R12KS4
FF100R12KS4
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-6: $68.26
6-10: $61.43
