Product Summary

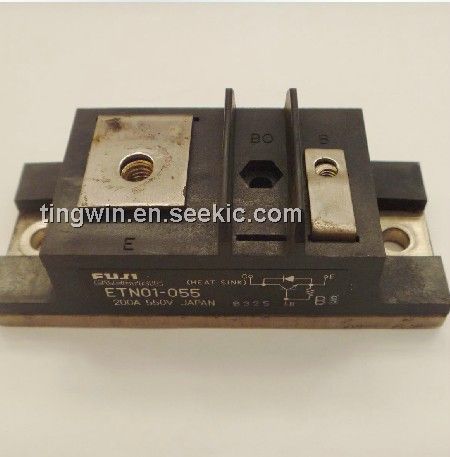

The ETN01-055 is a power transistor module. The applications of the device include high power switching, uninterruptible power supply, DC motor controls and welding machines.
Parametrics
ETN01-055 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO(SUS): 550V; (3)VCE: 5V; (4)IC: 120A; (5)ICcont: 200A; (6)hfe: 8; (7)IBP: 24A; (8)PC: 1500W; (9)Tj: 150℃; (10)Tstg: -40 to 125℃.
Features
ETN01-055 features: (1)high current; (2)high DC current gain; (3)non insulated type.

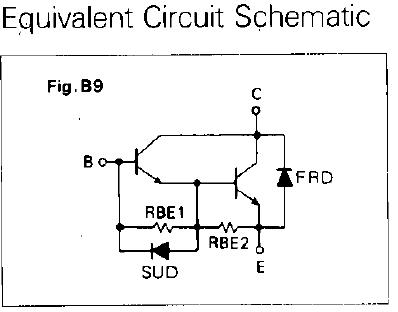

Diagrams
