Product Summary

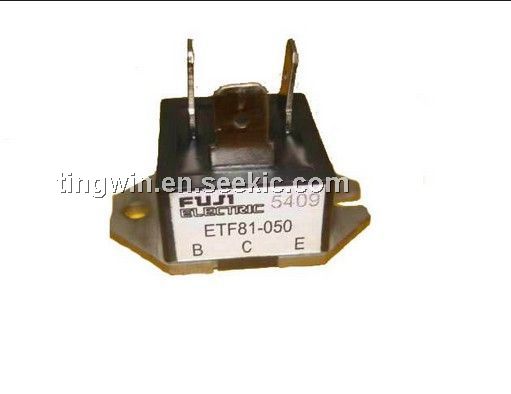

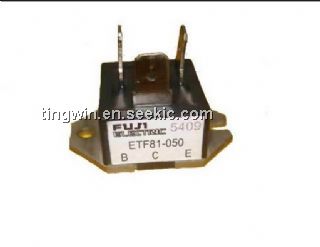

The ETF81-050 is a power transistor module. The applications of the device include power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

ETF81-050 aboslute maximum ratings: (1)VCBO: 600V; (2)VCEO: 450V; (3)VEO: 6V; (4)IC: 15A; (5)ICP: 30A; (6)-IC: 15A; (7)IB: 2A; (8)IBP: 5A; (9)PC: 120W; (10)Tj: 150℃; (11)Tstg: -40 to 125℃; (12)m: 33g; (13)Viso: 2500V; (14)mounting: 0.6Nm.

Features

ETF81-050 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

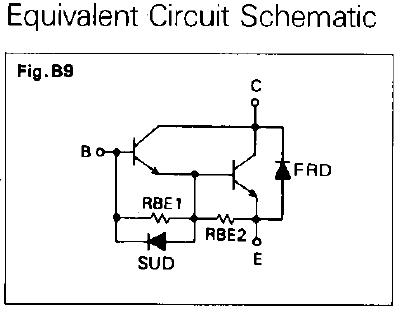

ETF81-050 equivalent circuit schematic
