Product Summary

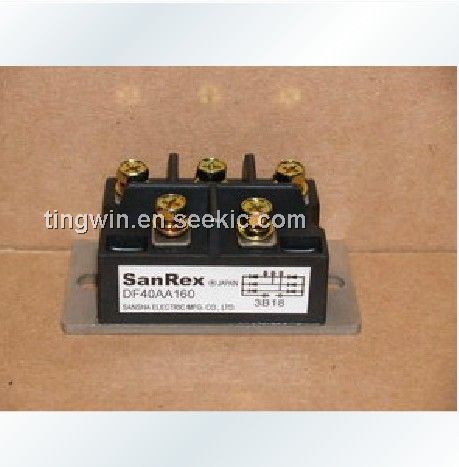

The DF40AA160 is a Power Diode Module which is designed for three phase full wave rectification. It has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 40Amp (Tc=116 ) Repetitive peak reverse voltage is up to 1,600V.
Parametrics
DF40AA160 absolute maximum ratings: (1)repective peak reverse voltage: 1600V; (2)non-repective peak reverse voltage: 1700V; (3)output current: 40A; (4)surge forward current: 640/700A; (5)junction temperature: -40 to +150℃; (6)Storage Temperature: -40 to +125℃.
Features
DF40AA160 features: (1)Isolated Mounting Base; (2)High reliability by unique glass passivation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DF40AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
DF40 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
DF400R12KE3 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 580A |
Data Sheet |
|
|
||||||||||||
|
DF40AA120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
DF40AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
