Product Summary

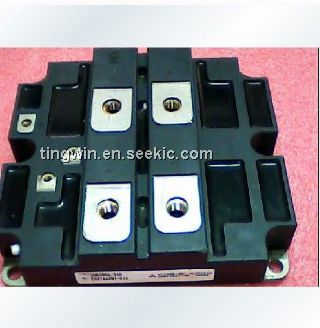

The cm800ha-34h is a high power switching use Misubishi IGBT module. Applications of the cm800ha-34h include: Inverters, Converters, DC choppers, Induction heating, DC to DC converters.
Parametrics
cm800ha-34h absolute maximum ratings: (1) Collector-emitter voltage VCES: 1700V (VGE=0V) ; (2) Gate-emitter voltage VGES: ±20V (VCE=0V) ; (3) Collector current IC: 800A (TC=25°C) ; (4) ICM: 1600A (Pulse) ; (5) Emitter current IE: 800A; (6) IEM: 1600A (Pulse) ; (7) Maximum collector dissipation: 8300W (Tc=25°C, IGBT part) ; (8) Junction temperature Tj: -40 to +150°C; (9) Storage temperature Tstg: -40 to +125°C; (10) Isolation voltage Viso: 4000V ( Charged part to base plate, rms, sinusoidal, AC 60Hz 1min.) .
Features
cm800ha-34h features: (1) IC: 800A; (2) VCES: 1700V; (3) Insulated type; (4) 1-elements in a pack.
Diagrams
