Product Summary

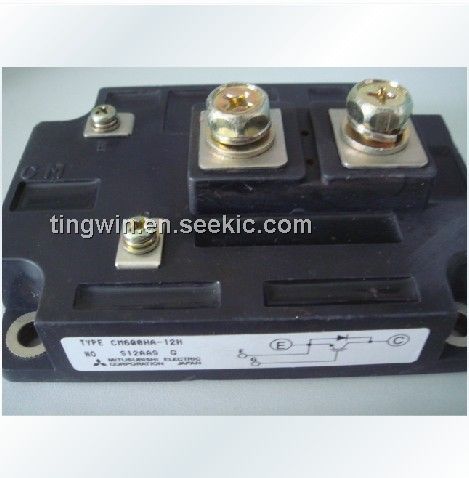

The cm600ha-12h is a Mitsubishi IGBT module. The cm600ha-12h is designed for use in switching applications. The cm600ha-12h consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the cm600ha-12h are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications of the cm600ha-12h include: AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
cm600ha-12h absolute maximum ratings: (1) Junction Temperature Tj: -40 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Collector-Emitter Voltage (G-E SHORT) VCES: 600V; (4) Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5) Collector Current (Tc=25°C) IC: 600A; (6) Peak Collector Current (Tj≤150°C) ICM: 1200A; (7) Emitter Current (TC= 25°C) IE: 600A; (8) Emitter Current (TC=25°C) : 1200A; (9) Maximum Collector Dissipation (TC=25°C) : 2100W; (10) Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500Vrms.
Features
cm600ha-12h features: (1) Low Drive Power; (2) Low VCE(sat) ; (3) Discrete Super-Fast Recovery Free-Wheel Diode; (4) High Frequency Operation; (5) Isolated Baseplate for Easy Heat Sinking.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CM600HA-12H |
IGBT MOD SGL 600V 600A H SER |
Data Sheet |
|
|
||||||||||||||||||
