Product Summary

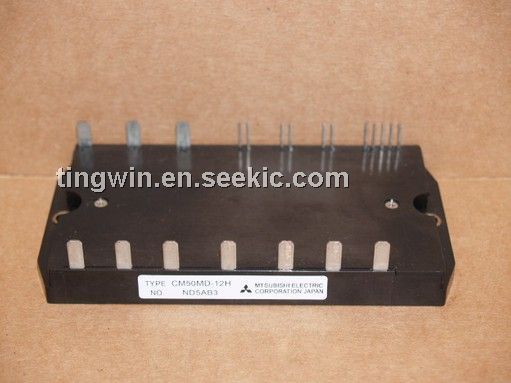

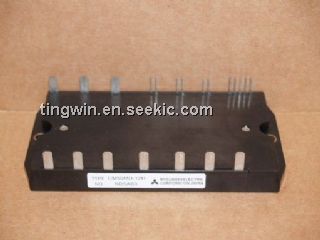

The CM50MD-12H is a medium power switching use insulated type module. The applications of the CM50MD-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics.
Parametrics
CM50MD-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 50A; ICM: 100A; (4)Emitter Current, IE: 50A; IEM: 100A; (5)Maximum collector dissipation, PC: 104W.
Features
CM50MD-12H features: (1)IC: 50A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module 3φ Inverter+3φ Converter+Brake; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CM50MD-12H |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
