Product Summary
The CM300HU-24H is a high power switching use insulated type IGBT Module. The applications of the CM300HU-24H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
CM300HU-24H absolute maximum ratings: (1)Junction Temperature : –40 to 150 ℃; (2)Storage Temperature : –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) : 600 V; (4)Gate-Emitter Voltage (C-E SHORT) : ±20 V; (5)Collector Current (TC = 25℃) : 300 A; (6)Peak Collector Current : 600 A; (7)Emitter Current (TC = 25℃) : 300 A; (8)Peak Emitter Current : 600 A; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃) : 1100 W.
Features
CM300HU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

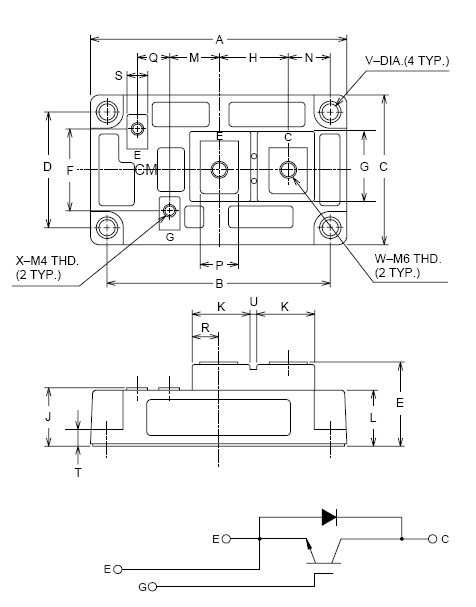

Diagrams
