Product Summary
The cm300ha-24h is a Mitsubishi IGBT module. The cm300ha-24h is designed for use in switching applications. The cm300ha-24h consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode.All components and interconnects of the cm300ha-24h are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications of the cm300ha-24h include: AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
cm300ha-24h absolute maximum ratings: (1) Junction Temperature Tj: -40 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Collector-Emitter Voltage (G-E SHORT) VCES: 1200V; (4) Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5) Collector Current (Tc=25°C) IC: 300A; (6) Peak Collector Current (Tj≤150°C) ICM: 600A; (7) Emitter Current (TC= 25°C) IE: 300A; (8) Emitter Current (TC=25°C) : 600A; (9) Maximum Collector Dissipation (TC=25°C) : 2100W; (10) Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500Vrms.
Features
cm300ha-24h features: (1) Low Drive Power; (2) Low VCE(sat) ; (3) Discrete Super-Fast Recovery Free-Wheel Diode; (4) High Frequency Operation; (5) Isolated Baseplate for Easy Heat Sinking.

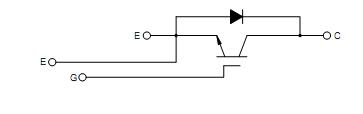

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CM300HA-24H |
![]() |
![]() IGBT MOD SGL 1200V 300A H SER |
![]() Data Sheet |
![]() Negotiable |
|
||||||
