Product Summary

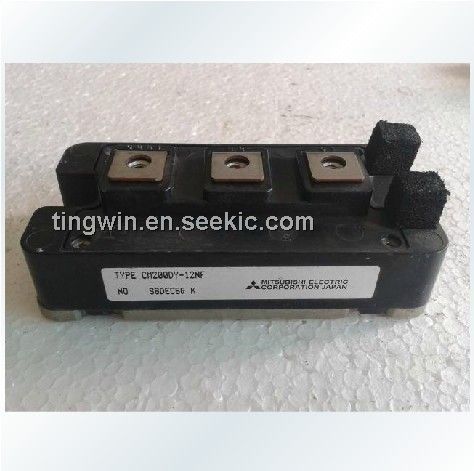

The CM200DY-12NF is an Insulated Type IGBT Module for high power switching use. Applications include General purpose inverters and Servo controls, etc.

Parametrics

CM200DY-12NF absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)Gate-emitter voltage: ±20V; (3)Emitter current-Pulse: 400A; (4)Maximum collector dissipation: 650W; (5)Junction temperature: -40 to 150℃; (6)Storage temperature: -40 to 125℃; (7)Isolation voltage: 2500V.

Features

CM200DY-12NF features: (1)IC: 200A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

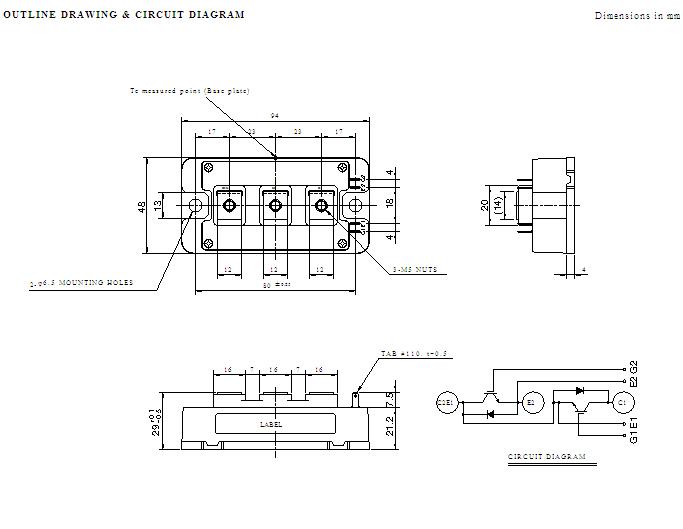

CM200DY-12NF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200DY-12NF
CM200DY-12NF


IGBT MOD DUAL 600V 200A NF SER

Data Sheet

0-1: $69.76
1-10: $65.39
10-100: $58.85
100-250: $56.67
250-500: $55.80
500-1000: $53.19
1000-2500: $52.32
