Product Summary

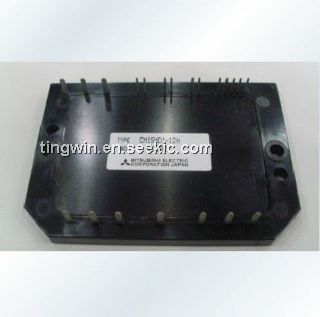

The cm15md1-12h is a medium power switching use flat-base type, insulated type Mitsubishi IGBT module. Applications of the cm15md1-12h include: AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.
Parametrics
cm15md1-12h absolute maximum ratings: (1) Collector-emitter voltage VCES: 600V (G-E short) ; (2) Gate-emitter voltage VGES: ±20V (C-E short) ; (3) Collector Current IC: 15A (Tc=25°C) , ICM: 30A (PULSE) ; (4) Emitter Current IE: 15A (Tc=25°C) , IEM: 30A (PULSE) ; (5) Maximum collector dissipation PC: 45W (Tf=25°C) .
Features
cm15md1-12h features: (1) IC: 15A; (2) VCES: 600V; (3) Insulated Type; (4) CIB Module; (5) UL Recognized.

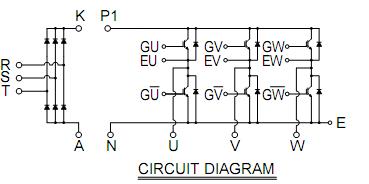

Diagrams
