CM1000HA-28H

IGBT module, 2000A, 1400V, 5800W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.00~33.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	33.00 / Piece
11 ~ 20 :	28.00 / Piece

PartNumber:: CM1000HA-28H

Brand:: Public Radio Exchange - PRX | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. winny's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-04

From Other Seller

Part Number:CM1000HA-28H
US $28.00 - 33.00
Quantity:

piece

Product Summary

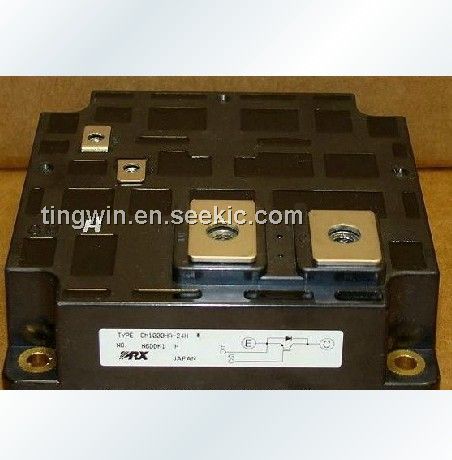

The cm1000ha-28h is a Mitsubishi IGBT module. The cm1000ha-28h is designed for use in switching applications. The cm1000ha-28h consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the cm1000ha-28h are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications of the cm1000ha-28h include: AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

cm1000ha-28h absolute maximum ratings: (1) Junction Temperature Tj: -40 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Collector-Emitter Voltage (G-E SHORT) VCES: 1400V; (4) Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5) Collector Current (Tc=25°C) IC: 1000A; (6) Peak Collector Current (Tj≤150°C) ICM: 2000A; (7) Emitter Current (TC= 25°C) IE: 1000A; (8) Emitter Current (TC=25°C) : 2000A; (9) Maximum Collector Dissipation (TC=25°C) : 5800W; (10) Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500Vrms.

Features

cm1000ha-28h features: (1) Low Drive Power; (2) Low VCE(sat) ; (3) Discrete Super-Fast Recovery Free-Wheel Diode; (4) High Frequency Operation;(5) Isolated Baseplate for Easy Heat Sinking.
