Product Summary

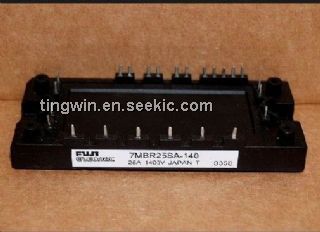

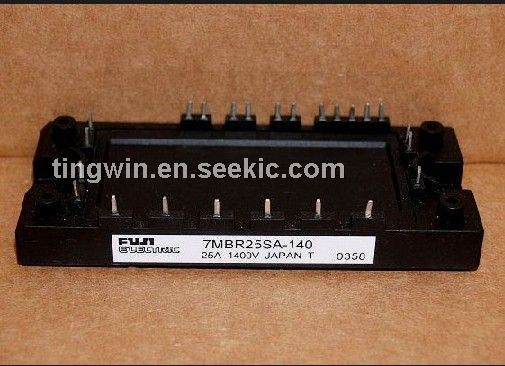

The 7MBR25SA-140 is an IGBT Module.
Parametrics
7MBR25SA-140 absolute maximum ratings: (1)VCES: 1200 V; (2)VGES: 20 V; (3)IC: 25 A; (4)PC: 180 W; (5)TJ: 150 ℃.
Features
7MBR25SA-140 features: (1)ICES: 1.0 MA; (2)IGES: 200 NA; (3)VGE(th): 5.5 to 8.5 V; (4)VCE(sat): 2.2 to 2.6 V; (5)CIES: 3000 PF; (6)IRRM: 1.0 MA; (7)B: 3305 to 3450 K.

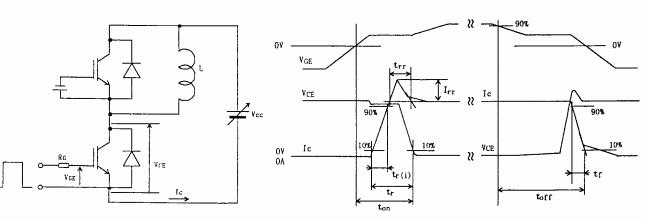

Diagrams
