Product Summary

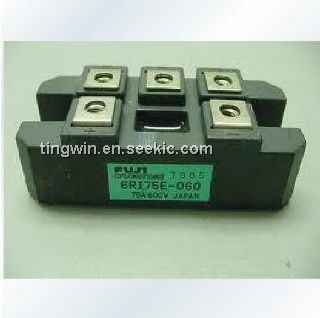

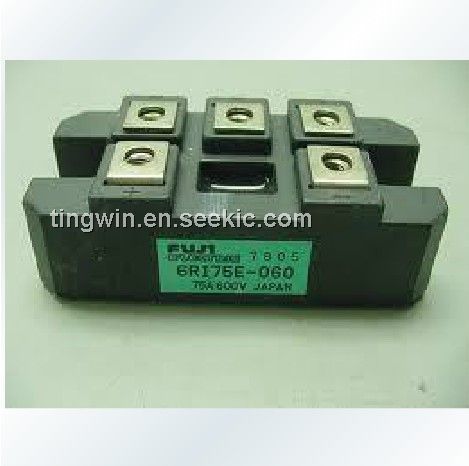

The 6RI75E-060 is a power diode module. The applications of the 6RI75E-060 include inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply units.
Parametrics
6RI75E-060 absolute maximum ratings: (1)Repetitive peak reverse voltage: 600V; (2)Non-repetitive peak reverse voltage: 660V; (3)Average output current: 75A; (4)Surge current: 1000A; (5)I2t: 4000A2s; (6)Operating junction temperature: -40 to +150℃; (7)Storage temperature: -40 to +125℃; (8)Isolation voltage: 2000VAC.
Features
6RI75E-060 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)The diode chips are coated with a glass of size oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3-phase bridge rectifying circuit inside the module-a cost-effective feature.

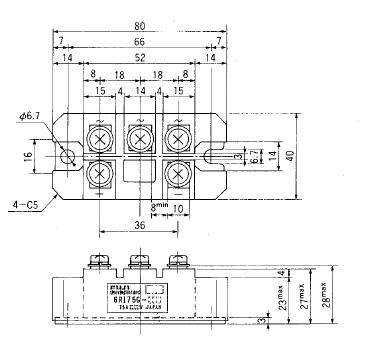

Diagrams
