Product Summary
The 6mbp50tea120 is a 1200V/50A 6 in one-package Econo IPM.
Parametrics
6mbp50tea120 absolute maximum ratings: (1) Bus voltage VDC: 0 to 900V (DC) , VDC (surge) : 0 to 1000V, VSC: 400 to 800V (short operating) ; (2) Collector-Emitter voltage VCES: 0 to 1200V; (3) Collector current IC: 50A (DC) , ICP: 100A (1ms) ; (4) Collector power dissipation Pc: 287W ( One transistor) ; (5) Supply voltage of Pre-Driver VCC: -0.5 to 20V; (6) Input signal voltage Vin: -0.5 to Vcc +0.5V; (7) Input signal current lin: 3mA; (8) Alarm signal voltage VALM: -0.5 to Vcc V; (9) Alarm signal current IALM: 20mA; (10) Junction temperature Tj: 150°C; (11) Operating case temperature Topr: -20 to 100°C; (12) Storage temperature Tstg: -40 to 125°C; (13) Solder temperature Tsol: 260°C; (14) Isolating voltage (Terminal to base, 50/60Hz sine wave 1min.) Viso: AC2500V.
Features
6mbp50tea120 features: (1) Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2) Low power loss and soft switching; (3) High performance and high reliability IGBT with overheating protection; (4) Higher reliability because of a big decrease in number of parts in built-in control circuit.

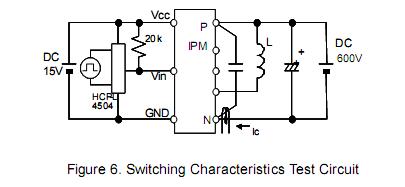

Diagrams
