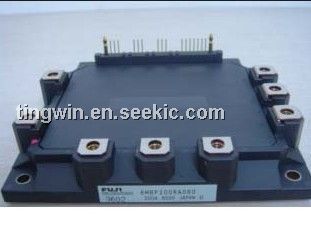

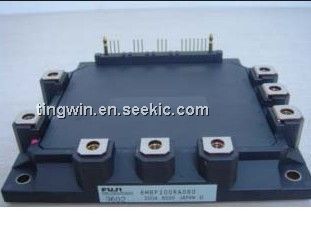

The 6mbp200ra060 is a 600V/200A 6 in one-package R series IGBT intelligent power module.
Parametrics
6mbp200ra060 absolute maximum ratings: (1) DC bus voltage VDC: 0 to 450V; (2) DC bus voltage (surge) VDC (surge) : 0 to 500V; (3) DC bus voltage (short operating) VSC: 200 to 400V; (4) Collector-Emitter voltage VCES: 0 to 600V; (5) Collector current IC: 200A (DC) , ICP: 400A (1ms) , -Ic: 200A (Duty=57.8%) ; (6) Junction temperature Tj: 150°C; (7) Input voltage of power supply for Pre-Driver VC: 0 to 20V; (8) Input signal voltage Vin: Vz; (9) Input signal current lin: 1mA; (10) Alarm signal current IALM: 15mA; (11) Storage temperature Tstg: -40 to 125°C; (12) Operating case temperature Top: -20 to 100°C; (13) Isolating voltage (Case-Terminal) Viso: AC 2.5 kV.
Features
6mbp200ra060 features: (1) Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2) Low power loss and soft switching; (3) High performance and high reliability IGBT with overheating protection; (4) Higher reliability because of a big decrease in number of parts in built-in control circuit.

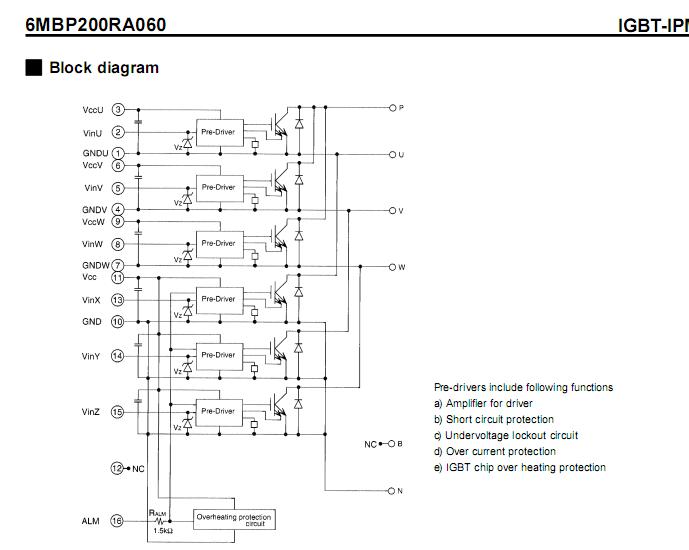

Diagrams
