Product Summary

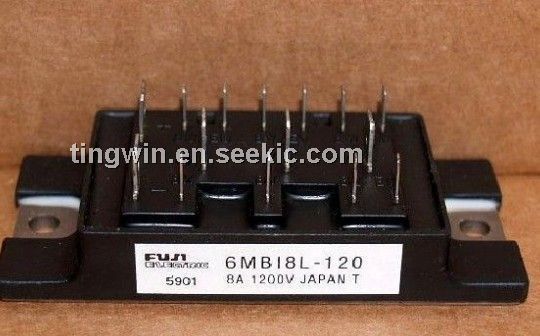

The 6MBI8L-120 is an IGBT module. It is designed for inverter for motor drive, AC and DC servo drive amplifier, uninerruptible power supply, industrial machines, such as welding machines.

Parametrics

6MBI8L-120 absolute maximum ratings: (1)collecter-emitter voltage: 120 V; (2)gate-emitter voltage: ±20 V; (3)collector current: 8 A; (4)max. power dissipation: 60 W; (5)operating temperature: +150 ℃; (6)storage temperature: -40 to +125 ℃; (7)isolation voltage: 2500 V.

Features

6MBI8L-120 features: (1)high speed switching; (2)low saturation voltage; (3)voltage type.

Diagrams

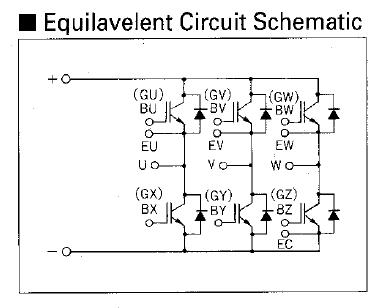

6MBI8L-120 block diagram
