Product Summary

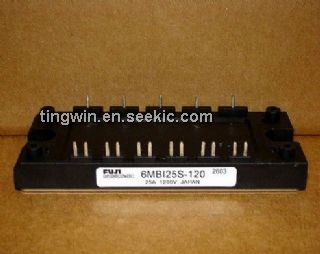

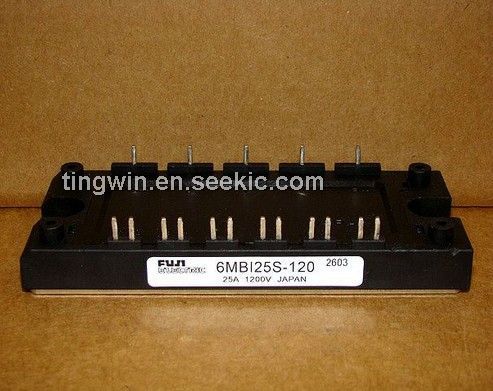

The 6mbi25s-120 is an S series IGBT module. Applications of the 6mbi25s-120 include: inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.
Parametrics
6mbi25s-120 absolute maximum ratings: (1) collector-emitter voltage VCES: 1200V; (2) gate-emitter voltage VGES: ±20V; (3) Collector current, IC: 35A (Tc=25°C, Continuous) , 25A (Tc=80°C, Continuous) , IC pulse: 70A (1ms, Tc=25°C) , 50A (1ms, Tc=80°C) , -Ic: 25A; -Ic pulse: 50A (1ms) ; (4) Max. power dissipation (1 device) Pc: 180W; (5) Operating temperature Tj: +150°C; (6) Storage temperature Tstg: -40 to +125°C; (7) Isolation voltage Vis: AC 2500V (1 min.) .
Features
6mbi25s-120 features: (1) Compact package; (2) P.C.board mount; (3) Low VCE (sat) .

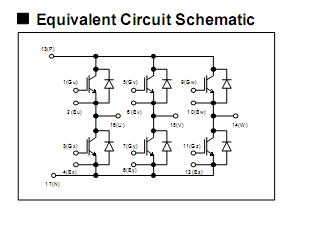

Diagrams
