Product Summary

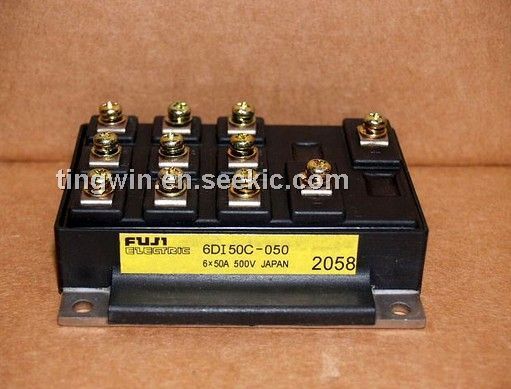

The 6di50c-050 is a 6-pack BJT power transistor module. Applications of the 6di50c-050 include: A.C motor controls and air conditioners.
Parametrics
6di50c-050 absolute maximum ratings: (1) VCBO: 600V; (2) VCEO: 600V; (3) VCE) (sus) : 450V; (4) VEBO: 6V; (5) IC: 50A (DC) ; (6) ICP: 100A (1ms) ; (7) -IC: 50A (DC), IB: 3A (DC) , IBP: 6A (1ms) ; (8) PC: 230W; (9) Tj: +150°C; (10) Tstg: -40 to +125°C; (11) Viso: 2500V.
Features
6di50c-050 features: (1) including free wheeling diode; (2) high D.C. current gain; (3) insulated type.
Diagrams
