Product Summary
The 2mbi50l-120 is a L series IGBT module. Applications of the 2mbi50l-120 include: inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.
Parametrics
2mbi50l-120 absolute maximum ratings: (1) collector-emitter voltage VCES: 1200V; (2) gate-emitter voltage VGES: ±20V; (3) collector current IC: 50A (Continuous) , IC pulse: 100A (1ms) ; (4) max power dissipation PC: 400W; (5) operating temperature Tj: 150°C; (6) storage temperature range Tstg: -40 to 125°C; (7) isolation voltage VIsol: 2500V (AC 1 mintue) .
Features
2mbi50l-120 features: (1) high speed switching; (2) low saturation voltage; 93) voltage drive.

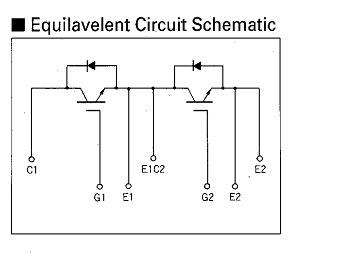

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

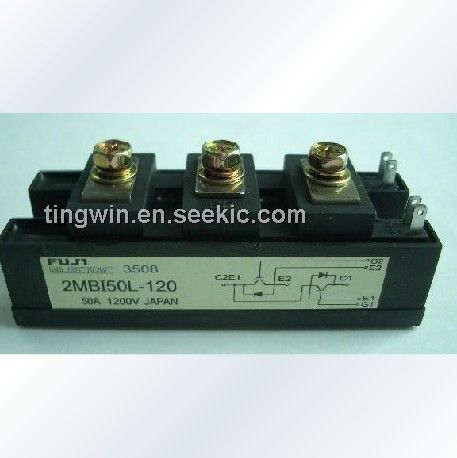

 2MBI50L-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
