Product Summary

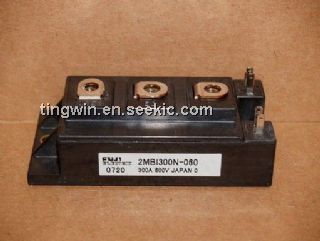

The 2mbi300n-060 is an IGBT module. Applications of the 2mbi300n-060 include: inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
2mbi300n-060 absolute maximum ratings: (1) collector-emitter voltage VCES: 600V; (2) collector current IC: 300A (Continuous) , ICpulse: 600A (1ms) , -IC: 300A (Continuous) , -ICpulse: 600A (1ms) ; (3) Max. power dissipation PC: 1100W; (4) Operating temperature Tj: +150°C; (5) Storage temperature Tstg: -40 to +125°C; (6) Isolation voltage Vis: AC 2500V (1min.) ; (7) Gate-emitter voltage VGES: ±20V.
Features
2mbi300n-060 features: (1) VCE (sat) classified for easy parallel connection; (2) voltage drive; (3) high speed switching; (4) low inductance module structure.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300N-060-04 |
Other |
|
Data Sheet |
Negotiable |
|
||||
