Product Summary

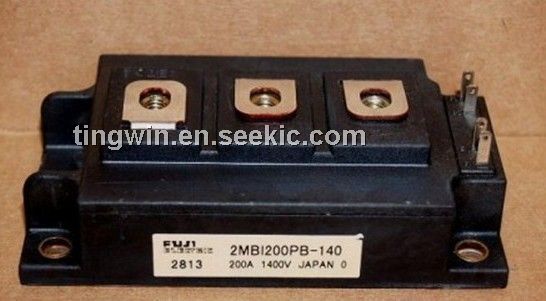

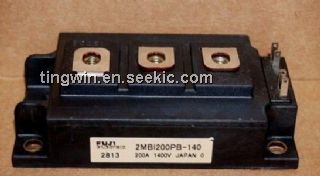

The 2mbi200pb-140 is a P series IGBT module. Applications of the 2mbi200pb-140 include: general purpose inverters, AC servo systems (drive unit) and UPS (uninterruptible power supply) .
Parametrics
2mbi200pb-140 absolute maximum ratings: (1) collector-emitter voltage VCES: 1400V; (2) collector current IC: 300A (Continuous, TC=25°C) , 200A (TC=25°C) , IC pulse: 600A (1ms, TC=25°C) , 400A (1ms, Tc=80°C) , -IC: 200A (Continuous) , -IC pulse: 400A (1ms) ; (3) Max. power dissipation PC: 1500W; (4) Operating temperature Tj: +150°C; (5) Storage temperature Tstg: -40 to +125°C; (6) Isolation voltage Vis: 2500V ( AC 1min.) ; (7) Gate-emitter voltage VGES: ±20V.
Features
2mbi200pb-140 features: (1) small temperature dependance of the turn-off switching loss; (2) easy to connect in parallel; (3) wide RBSOA (square up to 2 times of rated current) and high short-circuit withstand capability; (4) low loss and soft-switching (reduction of EMI noise) .
