Product Summary

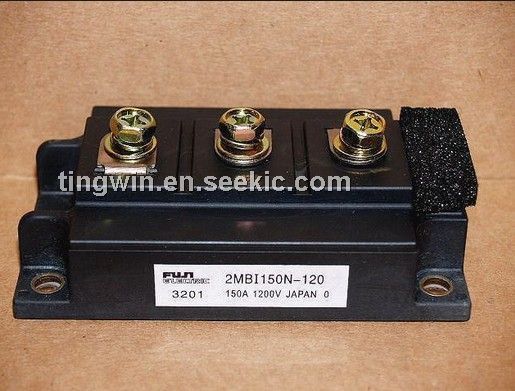

The 2mbi150n-120 is an N series IGBT module. Applications of the 2mbi150n-120 include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2mbi150n-120 absolute maximum ratings: (1) collector-emitter voltage VCES: 1200V; (2) collector current IC: 150A (Continuous) , ICpulse: 300A (1ms) , -IC: 150A (Continuous) , -ICpulse: 300A (1ms) ; (3) Max. power dissipation PC: 1100W; (4) Operating temperature Tj: +150°C; (5) Storage temperature Tstg: -40 to +125°C; (6) Isolation voltage Vis: 2500V ( AC 1min.) ; (7) Gate-emitter voltage VGES: ±20V.
Features
2mbi150n-120 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Improved FWD Characteristic; (5) Minimized Internal Stray Inductance; (6) Overcurrent Limiting Function (4~5 Times Rated Current) .
