Product Summary

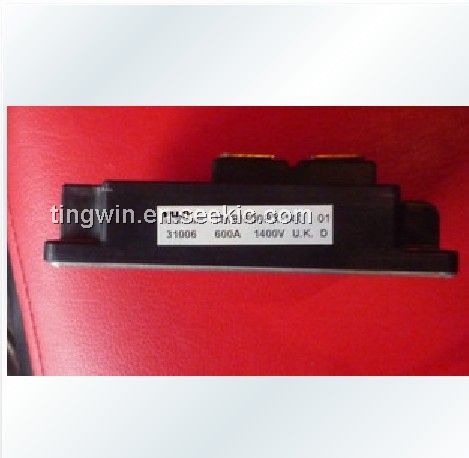

The 1mbi600px-140 is an IGBT module. Applications of the 1mbi600px-14 include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1mbi600px-140 absolute maximum ratings: (1) collector-emitter voltage VCES: 1400V; (2) gate-emitter voltage VGES: ±20V; (3) collector current IC:800/600A (Continuous, 25°C/80°C) , IC pulse: 1600/1200A (1ms, 25°C/80°C) ; -Ic: 600A (Continuous) , -Ic PULSE: 1200A (1ms) ; (4) max power dissipation PC: 4100W; (5) operating temperature Tj: +150°C; (6) storage temperature range Tstg: -40 to +125°C; (7) isolation voltage VIsol: 2500V (AC 1 mintue) .
Features
1mbi600px-140 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Improved FWD Characteristic; (5) Minimized Internal Stray Inductance.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1MBI600PX-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
