Product Summary

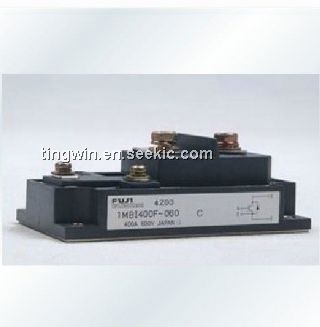

The 1mbi400f-060 is an IGBT module. Applications of the 1mbi400f-060 include: inverter for motor drive, AC.DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.

Parametrics

1mbi400f-060 absolute maximum ratings: (1) VCES: 600V; (2) VGES: ±20V; (3) Ic: 400A; (4) ICpulse: 800A (1ms) ; (5) -Ic: 400A; (6) -ICpulse: 800A; (7) Pc: 1440W; (8) Tj: +150°C; (9) Tstg: -40 to +125°C; (10) VISO: 2500V.

Features

1mbi400f-060 features: (1) low saturation voltage; (2) voltage drive; (3) variety of power capacity series.

Diagrams

1mbi400f-060 Equivalent Circuit
