Product Summary

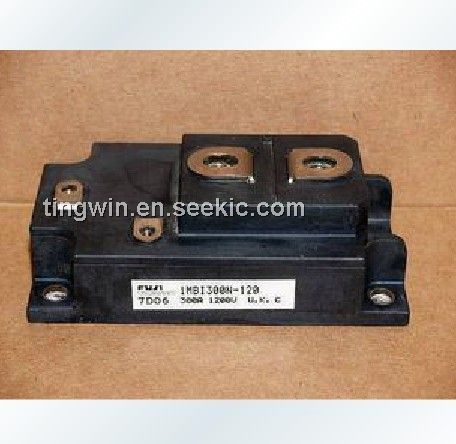

The 1mbi300n-120 is an N series IGBT module. Applications of the 1mbi300n-120 include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1mbi300n-120 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 1200V; (2) Gate -Emitter Voltage VGES: ±20V; (3) Collector Current IC: 300A (Continuous) , ICPULSE: 600A (1ms) , -IC: 300A (Continuous) , -ICPULSE: 600A (1ms) ; (4) Max. Power Dissipation Pc: 2100W; (5) Operating Temperature Tj: +150°C; (6) Storage Temperature Tstg: -40 to +125°C; (7) Isolation Voltag Vis: 2500V (A.C. 1min.) .
Features
1mbi300n-120 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Improved FWD Characteristic; (5) Minimized Internal Stray Inductance; (6) Overcurrent Limiting Function (4~5 Times Rated Current) .
