Product Summary
The PA1A-5V is designed as a SLIM power relay. And it can be used in (1)Interface relays for programmable controllers; (2)Output relays for measuring equipment, timers, counters and temperature controllers; (3)Industrial equipment, office equipment.
Parametrics
PA1A-5V absolute maximum ratings: (1)Max. operating speed: 20 cpm at rated load; (2)Surge voltage between contacts and coil: 4,000 V; (3)Operate time (at nominal voltage): Approx. 6 ms; (4)Release time (without diode): Approx. 3 ms; (5)Temperature rise: Max. 45°C with nominal coil voltage across coil and at nominal switching capacity; (6)Unit weight: Approx. 3 g .15 oz.
Features
PA1A-5V features: (1)Slim size (width 5 mm .197 inch, height 12.5 mm .492 inch) permits higher density mounting; (2)Wide switching capacity: Control from 100 mA 100 mV to 5 A 250 V AC, 30 V DC; (3)High sensitivity: 120 mW (Nominal) (5 to 18 V DC type); (4)High surge voltage (4000 V) and high breakdown voltage (2000 V); (5)Shock & vibration resistance (functional): Min. 147m/s2 {15 G}; (6)SIL (single in line) terminal layout; (7)Reinforced according to IEC1131-2.

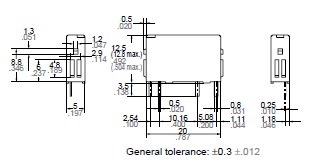

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA1A-5V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 5VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
 |
PA1A-5V-Y1 |
Panasonic Electric Works |
Relay Sockets & Hardware 1 Form A 5V 3A 250VAC 3A 30VDC |
Data Sheet |
|
|
||||||||||||
