Product Summary

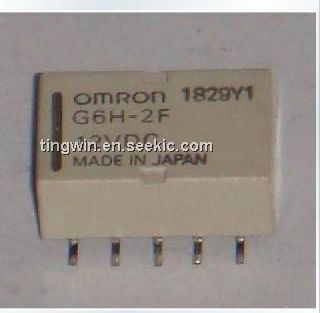

The G6H-2F-5V is a kind of Ultra-compact, Ultra-sensitive DPDT Relay.

Parametrics

G6H-2F-5V absolute maximum ratings: (1)Rated load: 0.50 A at 125 VAC, 1 A at 30 VDC; (2)Contact material: Ag (Au clad); (3)Carry current: 1 A; (4)Max. operating voltage: 125 VAC, 110 VDC; (5)Max. operating current: 1 A; (6)Max. switching capacity: 62.50 VA, 33 W; (7)Min. permissible load: 10 μA, 10 mVDC.

Features

G6H-2F-5V features: (1)Compact size and low 5 mm profile; (2)Low thermoelectromotive force; (3)Low magnetic interference enables high-density mounting; (4)Utilizes Omron moving-loop design; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6)High sensitivity with low nominal power consumption; (7)Single or dual coil latching types available; (8)RoHS Compliant.

Diagrams

G6H-2F-5V circuit diagram
