Product Summary

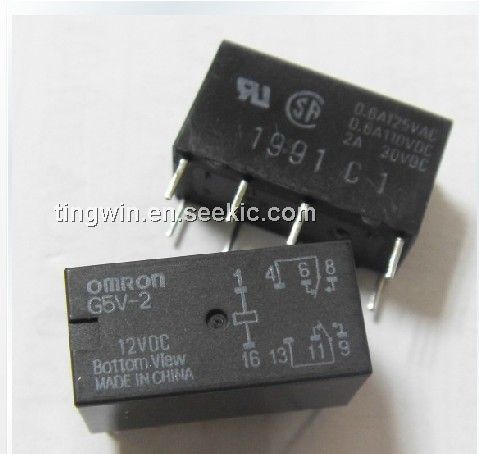

The G5V-2-12V is a PCB relay.
Parametrics
G5V-2-12V absolute maximum ratings: (1)Rated current: 41.7 mA; (2)Coil resistance: 288Ω; (3)Coil inductance (H) (ref. value), Armature OFF: 0.47; Armature ON: 0.74; (4)Must operate voltage: 75% max. of rated voltage; (5)Must release voltage: 5% min. of rated voltage; (6)Max. voltage: 120% of rated voltage at 23℃; (7)Power consumption: Approx. 500 mW.
Features
G5V-2-12V features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; open contacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability.; (5)New 150-mW relays with high-sensitivity.
Diagrams
