Product Summary

The G5S-1-5V is a Compact Single-pole Relay for Switching Up to 5 A (Normally Open Contact), Ideal for Fan Control of Air Conditioners, and Heating Control of Small Appliances.

Parametrics

G5S-1-5V absolute maximum ratings: (1)Rated voltage 5 VDC; (2)Rated current 80 mA; (3)Coil resistance 63 Ω; (4)Must operate voltage 75% max. of rated voltage; (5)Must release voltage 5% min. of rated voltage; (6)Maximum voltage 150% of rated voltage at 23℃; (7)Power consumption Approx. 400 mW.

Features

G5S-1-5V features: (1)Environment-friendly, Pb-free/Cd-free.; (2)Compact SPDT Relay with high insulation between coil and contacts.; (3)Ensures an impulse withstand voltage of 8,000 V between the coil and contacts.; (4)UL recognized, CSA certified and VDE (EN) approved. ; (5)RoHS Compliant.

Diagrams

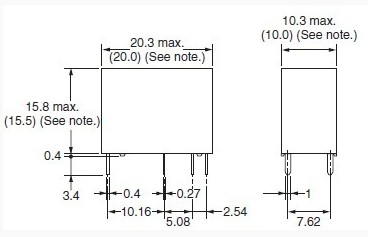

G5S-1-5V dimensions
