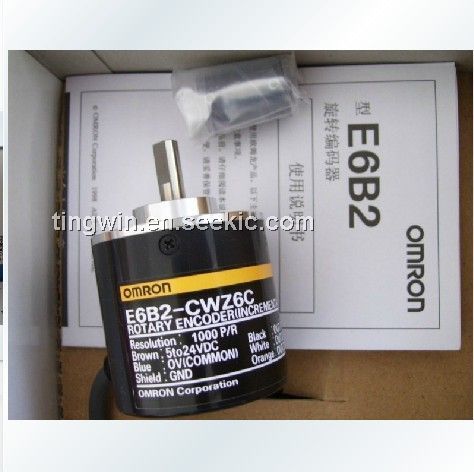

E6B2-CWZ6C

E6B2-CWZ6C, new general-purpose incremental-type rotary encoder, 80 mA, 27.6 VDC, 1,000 MΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $22.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	25.00 / Piece
11 ~ 30 :	22.00 / Piece

PartNumber:: E6B2-CWZ6C

Brand:: Omron Electronics LLC - OMRON | D/C: 11+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. winny's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:E6B2-CWZ6C
US $22.00 - 25.00
E6B2-CWZ6C 2000P / R 360P / R rotary encoder

US $75.00 - 113.00 / Piece
(0) Remove
E6B2-CWZ6C100PR

US $32.00 - 35.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The E6B2-CWZ6C is a general-purpose incremental-type rotary encoder.

Parametrics

E6B2-CWZ6C absolute maximum ratings: (1)Power supply voltage: 5 to 24 VDC (allowable range: 4.75 to 27.6 VDC); (2)Current consumption 80 mA max.; (3)Resolution: 10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,200, 1,500, 1,800, 2,000 P/R; (4)Output phases: A, B, and Z (reversible); (5)Output configuration: Open collector; (6)Phase difference on output: 90°+/-45° between A and B (1/4T+/-1/8T); (7)Max. response frequency 100 kHz; (8)Insulation resistance 1,000 MΩ min. (at 500 VDC) between carry parts and case.

Features

E6B2-CWZ6C features: (1)A wide operating voltage range of 5 to 24 VDC (open collector model); (2)Resolution of 2,000 pulses/revolution in 40-mm housing; (3)Phase Z can be adjusted with ease using the origin indicating function; (4)A large load of 3 kgf (29.4 N) in the radial direction and 2 kgf (19.6 N) in the thrust direction is permitted; (5)The load short-circuit and reversed connection protecting circuit assures highly reliable operation.
