Product Summary

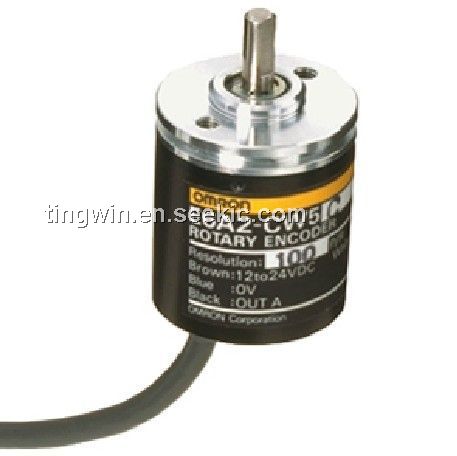

The E6A2-CW5C is an incremental rotary encoder.
Parametrics
E6A2-CW5C absolute maximum ratings: (1)Supply voltage: 5 VDC -5% to 12 VDC +10%; max. 5% ripple peak-to-peak; (2)Maximum rpm: 5,000 rpm; (3)Electrical connection: Prewired with 0.5 m (1.64 ft) length cable; (4)Weight Approx. 35 g (1.2 oz); (5)Ambient humidity: 35% to 85% RH; (6)Vibration resistance Mechanical durability: 10 to 55 Hz, 1.5 mm double amplitude, in X, Y, and Z directions for 2 hours each; (7)Insulation resistance 10 MΩ minimum at 500 VDC between current-carrying part and housing; (8)Dielectric strength 500 VAC, 50/60 Hz for 1 minute between current-carrying part and housing.
Features
E6A2-CW5C features: (1)Wide variety of supply voltages and output forms to match input devices; (2)Models with zero index function ideal for positioning applications; (3)High resolution models (300 or 360 pulses per revolution) substantially improve measuring accuracy; (4)High response frequency and noise immunity make encoders ideal for factory automation applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E6A2-CW5C 100P/R 0.5M |
Omron Industrial |
Controllers INC 12-24VDC OPEN AB PHASE |
Data Sheet |
|
|
||||||||||||
|
E6A2-CW5C 200P/R 0.5M |
Omron Industrial |
Controllers INC 12-24VDC OPEN A B PHASE |
Data Sheet |
|
|
||||||||||||
 |
E6A2-CW5C100 P/R 2M |
Omron Industrial |
Controllers ROTARY ENCODER 2M CABLE |
Data Sheet |
|
|
||||||||||||
|
E6A2-CW5C 200P/R 2M |
Omron Industrial |
Controllers INC 12-24VDC Open A B Phase |
Data Sheet |
|
|
||||||||||||
|
E6A2-CW5C 500P/R 0.5M |
Omron Industrial |
Controllers Cable |
Data Sheet |
|
|
||||||||||||
|
E6A2-CW5C 360P/R 0.5M |
|
ENCODER ROTARY 12-24V 360RES .5M |
Data Sheet |
|
|
||||||||||||
