Product Summary

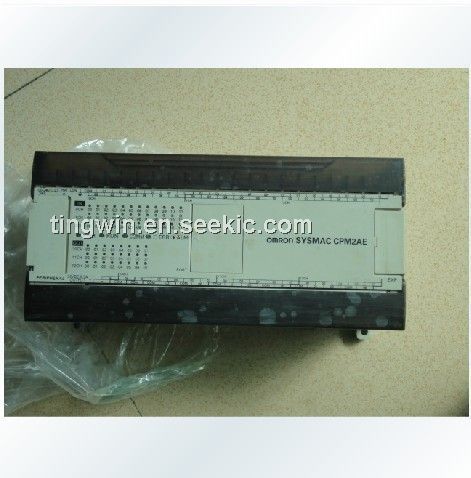

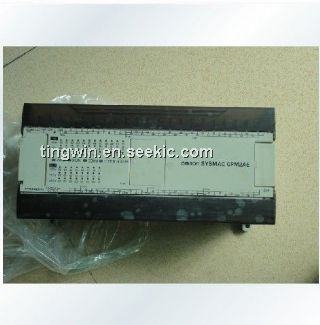

The CPM2AE-60CDR-A is a programmable controller. The CPM2AE-60CDR-A rack-less modular design lets you customize your control system by adding “inner boards” for advanced functions, as well as specialized I/O and communications modules. CQM1H offers the most flexibility of all PLC systems in its class.
Parametrics
CPM2AE-60CDR-A absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC, 50/60 Hz 100; (2)Operating voltage range: 85 to 264 VAC; (3)Operating frequency range: 47 to 63 Hz; (4)Power consumption: 60 VA max.; (5)Inrush current: 30 A max.; (6)Ambient temperature Operating: 0° to 55°C; (7)Ground: Less than 100 Ω; (8)Weight: 5 kg max..
Features
CPM2AE-60CDR-A features: (1)4 different base CPUs to choose from; 16 DC inputs built in; expands up to 512 points; (2)No separate backplane required; (3)Inner Boards allow “customized” configuration of the CPU; (4)Serial communications inner board supports protocol macro feature for communication with third-party serial devices; (5)Supports all existing and new CQM1 I/O and specialized I/O modules; (6)Optional memory cassettes allow backup of sensitive data, provides a real-time clock; (7)ControllerLink network transmits 8 kword data packets at up to 2 Mbps; 32 nodes; (8)Advanced instruction set includes PID, floating point math, protocol macro instructions and more; (9)CompoBus/S, SYSMAC BUS and AS-interface masters support remote I/O; (10)Up to 15.2 kwords of program memory.
Diagrams
