Product Summary

The cp1w-cif01 is a sysmac Cj-series CJ2M cpu unit, pulse I/O module. The cp1w-cif01 is in control of a wide variety of applications worldwide. The accumulated experience and advancements in technoloy now result in cp1w-cif01; fully compatible, yet fully new.

Parametrics

cp1w-cif01 absolute maximum ratings: (1) Input current: 6mA typical; (2) Input form: 24VDC inputs; (3) Input voltage range: 24VDC +10%/-15%; (4) Input impedance: 3.6kΩ; (5) ON voltage/current: 17.4 VDC min., 3 mA min.; (6) OFF voltage/current: 1 mA max. at 5 VDC max.

Features

cp1w-cif01 features: (1) Five variations in program capacit y from 5K steps to 60K steps; scale the CPU to your application needs; (2) Faster processors; LD instruction execution time is reduced to 40 ns, floati ng point trigonometrics in less than 1 μ s; (3) Optional Pulse I/O Modules can be mounted to enable positioning functions for up to four axes. The module provides high-speed c ounters, interrupt inputs and pulse trai n/PWM outputs. (CJ2M CPU Units with Unit Version 2.0 or Later) ; (4) Faster Function Block calls and execution, fa ster interrupt handling, less overhead time; (5) Added execution memory for Function Blocks allows structured, obj ect-oriented programming even in entry-level CPUs; (6) General-purpose Ethernet port supports EtherNet/IP tag-based data links, connection to Support Software, communications betwee n PLCs, FTP data transfers, and more; (7) Standard USB port on all models allows Support Software to connect directly through standard USB cable; (8) A Serial Option Module can be mounted to add RS-232C or RS-422A/485 communica tions ports; (9) Compatible with all existing CJ1 power supply-, I/O-, control- and communication units.

Diagrams

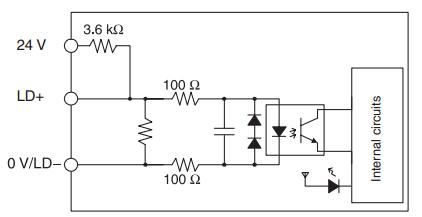

cp1w-cif01 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CP1W-CIF01
CP1W-CIF01

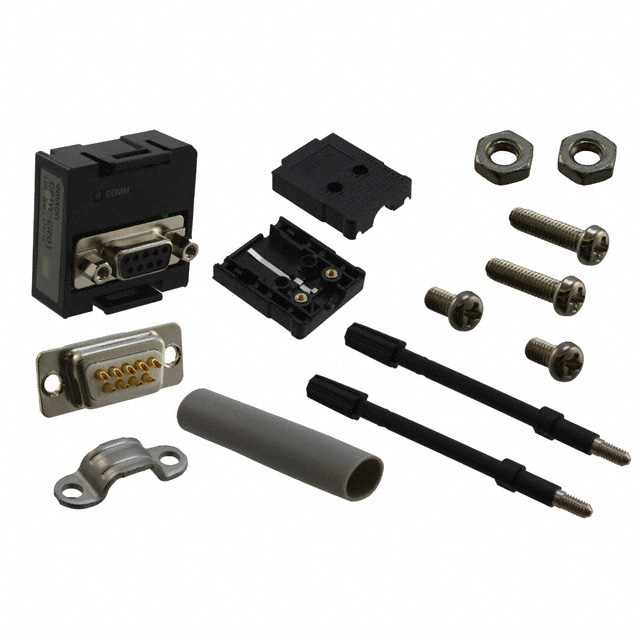

CONNECTOR (UNIT, EXPANSION)
Data Sheet
0-1: $50.96
1-25: $45.87
25-50: $40.77
50-100: $36.69
100-250: $34.65
250-500: $30.58
500-1000: $27.52
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CP1W-16ER
CP1W-16ER

EXPANSION I/O UNIT
Data Sheet
0-1: $166.32
CP1W-16ET
CP1W-16ET

EXPANSION I/O UNIT
Data Sheet
0-1: $166.32
CP1W-16ET1
CP1W-16ET1

EXPANSION I/O UNIT
Data Sheet
0-1: $166.32
CP1W20EDR1
CP1W20EDR1
Omron Industrial
Controllers Expansion 12 In 8 Out Relay
Data Sheet
Negotiable
CP1W-20EDR1
CP1W-20EDR1
Omron Electronics
Controllers
Data Sheet
Negotiable
CP1W20EDT
CP1W20EDT
Omron Industrial
Controllers 12 In 8 Out NPN Expansion
Data Sheet
Negotiable
