Product Summary

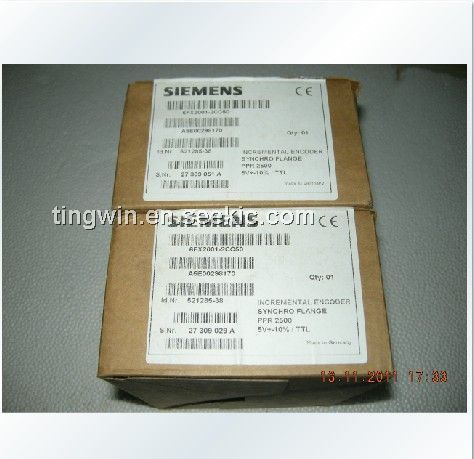

The 6FX2001-2CC50 is a 5V encoder.

Parametrics

6FX2001-2CC50 general specifications: (1)Operating voltage VP at the encoder: 5 V; (2)Relative symmetric tolerance of the operating voltage: 10 %; (3)Current consumption without load: 150mA; (4)Switching time (10 … 90 %)for 1 m cable and recommended input circuit: max. 50 ns; (5)Edge spacing at 300 kHz / min. : 0.45us.

Features

6FX2001-2CC50 features: (1)Speed / electric max.: 7200 1/min; (2)Friction torque at 20°C / max. : 0,01 N.m; (3)Starting torque at 20 °C / max.: 0,01 N.m.
