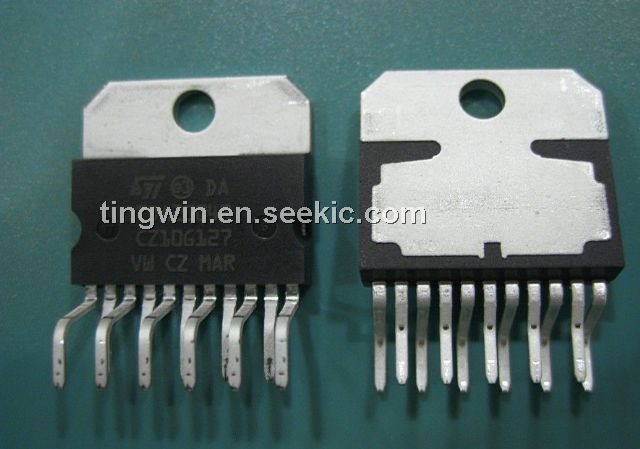

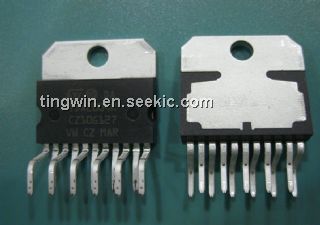

Product Summary

The TDA2004 is a class B dual audio power amplifier in MULTIWATT package specially designed for car radio applications; stereo amplifers are easily designed using the TDA2004 that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6Ω) .

Parametrics

TDA2004 absolute maximum ratings: (1) Opearting Supply Voltage: 18V; (2) DC Supply Voltage VS: 28V; (3) Peak Supply Voltage (for 50ms) VS: 40V; (4) Output Peak Current (non repetitivet=0.1ms) : 4.5A; (5) Output Peak Current (repetitive f≥ 10Hz) : 3.5A; (6) Power Disspation at Tcase=60°C, Ptot: 30W; (7) Storag and Junction Temperature: -40 to 150°C.

Features

TDA2004 features: (1) low distortion; (2) low nosie; (3) High reliability of the chip and of the package with additional safety during operation; (4) space and cost saving.

Diagrams

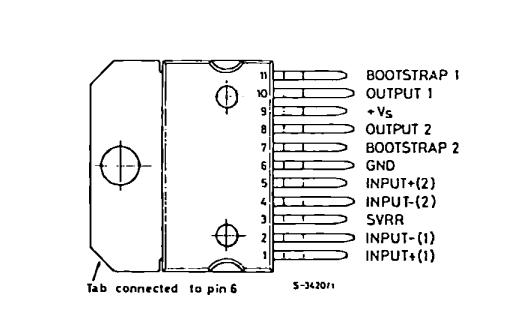

TDA2004 Pin Connection
