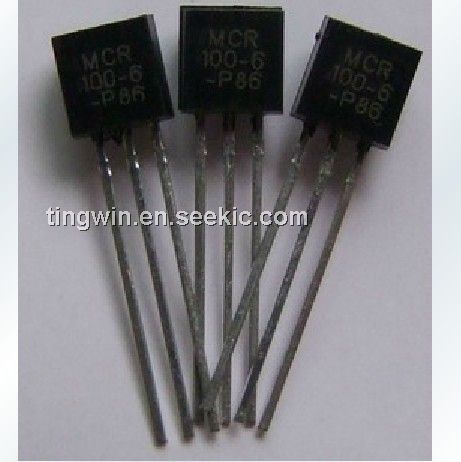

MCR100-6

MCR100-6, silicon controlled rectifier, 600V, 0.8A, TO-92, 0.01W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.80 / Piece
101 ~ 300 :	0.50 / Piece

PartNumber:: MCR100-6

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. winny's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-09

From Other Seller

Part Number:MCR100-6
US $0.50 - 0.80
Quantity:

piece

Product Summary

The MCR100-6 is a silicon controlled rectifier. The MCR100-6 is designed for high volume, line-powered consumer applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits.

Parametrics

MCR100-6 absolute maximum ratings: (1) Peak Repetitive Forward and Reverse Blocking Voltage (TJ=25 to 125°C, RGK=1kΩ) , VDRM and VRRM: 400V; (2) Forward Current RMS (See Figures 1 & 2) (All Conduction Angles) IT (RMS) : 0.8A; (3) Peak Forward Surge Current, TA=25°C, (1/2 Cycle, Sine Wave, 60 Hz) ITSM: 10A; (4) Circuit Fusing Considerations (t=8.3ms) : 0.415A; (5) Peak Gate Power-Forward, TA=25°C PGM: 0.1W; (6) Average Gate Power-Forward, TA=25°C, PGF (AV) : 0.01W; (7) Peak Gate Current-Forward, TA=25°C (300μs, 120 PPS) IGFM: 1A; (8) Peak Gate Voltage-Reverse, VGRM: 5V; (9) Operating Junction Temperature Range@Rated VRRM and VDRM: -40 to +125°C; (10) Storage Temperature Range Tsgr: -40 to +150°C; (11) Lead Solder Temperature( 1/16 inch from case, 10s max) : +230°C.

Features

MCR100-6 features: (1) Sensitive Gate Trigger Current: 200μA Maximum; (2) Low Reverse and Forward Blocking Current: 10μA Maximum, Tc=125°C; (3) Low Holding Current: 5mA Maximum; (4) Glass-Passivated Surface for Reliability and Uniformity.
