Product Summary

The MB90F594G proprietary microcontroller is especially designed for automotive and industrial applications. The main features of the MB90F594G are two on board CAN Interfaces, which conform to V2.0 Part A and Part B, while supporting a very flexible message buffer scheme and so offering more functions than a normal full CAN approach. The MB90F594G has peripheral resources of 8/10-bit A/D converters, UART (SCI), extended I/O serial interface, 8/16-bit PPG timer, I/O timer (input capture (ICU), output compare (OCU), stepping motor controller, and sound generator.

Parametrics

MB90F594G absolute maximum ratings: (1) Power supply voltage, VCC: Vss-0.3 to Vss +6.0V, AVcc: Vss-0.3 to Vss +6.0V( Vcc=Avcc) , AVRH, AVRL: Vss -0.3V to Vss +6.0V, DVcc: Vss -0.3V to Vss +6.0V (Vcc≥DVcc) ; (2) Input voltage, Vo: Vs-0.3V tp Vss +6.0V; (3) Clamp Current Iclamp: -2.0 to 2.0mA; (4) Power consumption PD: 500mW, 400mW; (5) Operating temperature TA: -40 to +85°C; (6) Storage temperature Tstg: -55 to +150°C.

Features

MB90F594G features: (1)Embedded PLL clock multiplication circuit; (2)Operating clock (PLL clock) can be selected from divided-by-2 of oscillation or one to four times the oscillation (at oscillation of 4 MHz, 4 MHz to 16 MHz); (3)Minimum instruction execution time: 62.5 ns (operation at oscillation of 4 MHz, four times the oscillation clock, Vcc of 5.0V).

Diagrams

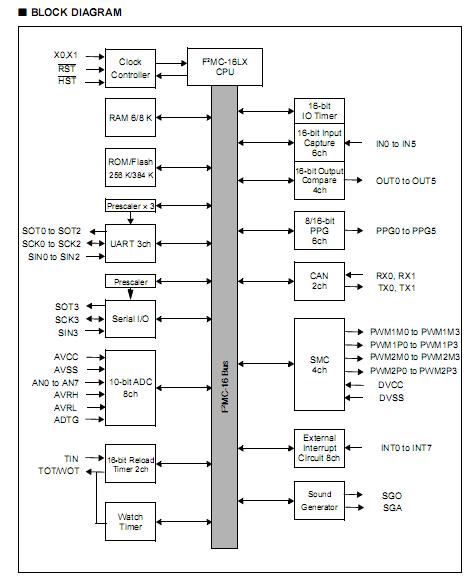

MB90F594G Block Diagram
