Product Summary

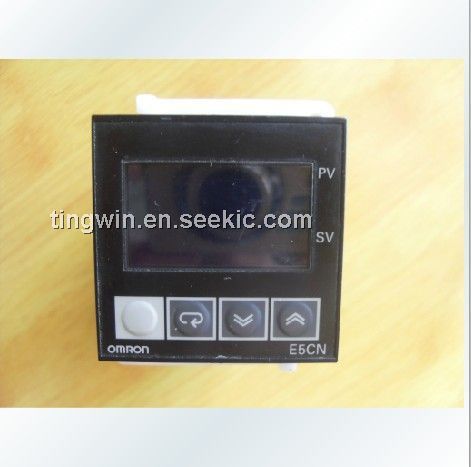

The E5CN-Q2MP-500 is a basic-type digital temperature controller.
Parametrics
E5CN-Q2MP-500 absolute maximum ratings: (1)Power supply voltage: No D in model number: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.); (4)Control method: ON/OFF control or 2-PID control (with auto-tuning): 50 A; (5)External power supply for ES1B 12 VDC ±10%, 20 mA, short-circuit protection circuit provided; (6)Ambient operating temperature -10 to 55°C (with no condensation or icing), for 3-year warranty: -10 to 50°C; (7)Ambient operating humidity 25% to 85%; (8)Storage temperature: -25 to 65°C (with no condensation or icing).
Features
E5CN-Q2MP-500 features: (1)Indication Accuracy: Thermocouple input: +/-0.3% of PV (previous models: +/-0.5%), and Pt input: +/-0.2% of PV (previous models: +/-0.5%) Analog input: +/-0.2% FS (previous models: +/-0.5%); (2)New E5CN-U Models (Plug-in Models) with analog inputs and current outputs; (3)A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV; (4)Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 E5CN-Q2MP-500 AC/DC24 |
Omron Industrial |
Controllers |
Data Sheet |
Negotiable |
|
||||
|
E5CN-Q2MP-500 AC100-240 |
Omron Industrial |
Controllers |
Data Sheet |
Negotiable |
|
||||
