Product Summary
The T491D227K010AT is a standard MnO2 Tantalum surface mount capacitor. The KEMET T491D227K010AT, designed specifically for todays highly automated surface mount processes and equipment, is the leading choice for surface mount designs. It combines KEMETs proven solid tantalum technology, acclaimed and respected throughout the world, with the latest in materials, processes and automation, resulting in unsurpassed total performance and value. This T491D227K010AT meets or exceeds the requirements of EIA standard 535BAAC. The physical outline and dimensions of this series conform to this global standard.
Parametrics
T491D227K010AT performance characteristics: (1)Operating Temperature: -55℃ to 125℃; (2)Rated Capacitance Range: 0.1μF–1000μF @ 120 Hz/25℃; (3)Capacitance Tolerance: K Tolerance (10%), M Tolerance (20%); (4)Rated Voltage Range: 2.5V–50V; (5)Leakage Current: ≤ 0.01CV (μA) at Rated Voltage after 5 minutes.
Features
T491D227K010AT features: (1)Meets or Exceeds EIA Standard 535BAAC; (2)Taped and Reeled per EIA 481-D; (3)Symmetrical, Compliant Terminations; (4)Optical Gold-Plated Terminations; (5)Laser-marked Case; (6)100% Surge current test on C, D, E, U, V, X sizes; (7)Halogen Free Epoxy; (8)Capacitance 0.1μF to 1000μF; (9)Tolerance ±10%, ±20%; (10)Voltage 2.5-50 VDC; (11)Extended Range Values; (12)Low Profile Case Sizes; (13)RoHS Compliance & Lead Free Terminations; (14)Operating Temperature: -55℃ to +125℃.

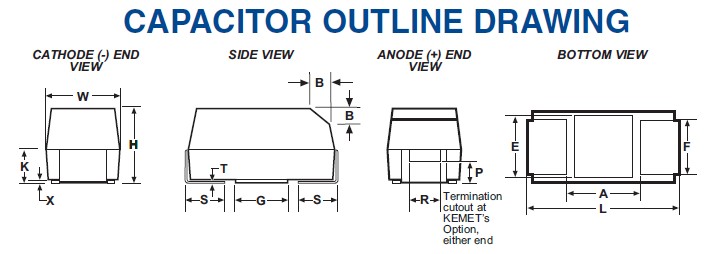

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 T491D227K010AT |
Kemet |
Tantalum Capacitors - Solid SMD 10V 220uF 10% "D" |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
T491 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
T491 SERIES |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
T491A104K035AG |
Kemet |
Tantalum Capacitors - Solid SMD .100UF 35.0V |
Data Sheet |
Negotiable |
|
||||||||||||
|
T491A104K035AH |
Kemet |
Tantalum Capacitors - Solid SMD 35V 0.1uF 10% "A" |
Data Sheet |
|
|
||||||||||||
|
T491A104K035AS |
Kemet |
Tantalum Capacitors - Solid SMD .1uF 35volts 10% |
Data Sheet |
Negotiable |
|
||||||||||||
|
T491A104K035AT |
Kemet |
Tantalum Capacitors - Solid SMD 35V 0.1uF 10% "A" |
Data Sheet |
|
|
||||||||||||
